Specifications
| Control | |
|---|---|
| Show Control | Advanced Scripted Control |
| Timeline Programming | |
| ShowTouch Touch Panel Integration | |
| Intuitive Device Control (PLC, DSP, Animation, AV, Projection, etc.) | |
| Display | 4.3" TFT LCD Main Display /w navigation wheel |
| Indicators | Power, LTC, Sync, Live Mode, Ethernet, Inputs, Outputs |
| Ethernet | 4 x 100/1000 BaseT (RJ45) |
| Isolated Networks - No internal switch/bridge | |
| Device Control | |
| Programming & Configuration | |
| Serial | 4 x RS232/RS422 (5-pin Phoenix) |
| 12 x RS232 (3-pin Phoenix) | |
| DMX | 1 x DMX512 Output (5-pin Phoenix - Port 1) |
| Digital Inputs | 16 x Contact/Voltage Inputs (4 x 8-pin Phoenix) |
| Software Configurable for Voltage (5-24VDC) or Contact Closure | |
| Relay Outputs | 16 x N.O. Dry-contact Relay Output (4 x 8-pin Phoenix) |
| Self-Restoring Polymer Fuses (900mA) | |
| Show Memory | Removable SD Card /w Captive Socket |
| Synchronization | |
|---|---|
| Sync Inputs | PTP In -- IEEE-1588/CIP-Sync (RJ45 - Network A or B) |
| NTP In (RJ45 - Network A, B, C, or D) | |
| GPS In (7-pin Phoenix) | |
| SMPTE LTC In (3-Pin Phoenix) | |
| Genlock In - Blackburst, C-Sync, Tri-level (BNC) | |
| Sync Outputs | PTP Out -- IEEE-1588 (RJ45 - Network A or B) |
| NTP Out (RJ45 - Network A, B, C, or D) | |
| SMPTE LTC Out (3-Pin Phoenix) | |
| Genlock Out - C-Sync (BNC) | |
| Frame Rates | 23.976, 24, 25, 29.97, 30, 47.952, 48, 50, 59.94, 60 |
| GPS Type | NMEA-0183 /w PPS Clock Input |
| Clock Accuracy | GPS - \<1uS /w \<1ppB Free-run accuracy |
| PTP - \<1uS /w \<1ppB Free-run accuracy | |
| Genlock + NTP - \<1mS /w \<10ppB Free-run accuracy |
| Physical | |
|---|---|
| Power | V16X - 110-240VAC (50W Max) |
| V16X-DC - 24VDC | |
| Dimensions | 19"W x 14"L x 3.5"H (483mm x 356mm x 89mm) |
| Weight | 11.1 lbs (5.0 kg)1 |
| Environment | 0°C (32°F) to 38°C (100°F) |
| 0-90% Relative Humidity | |
| Mounting | 2U 19" Rack-Mount |
| Compliance | UL, CE, CB, WEEE, RoHS |

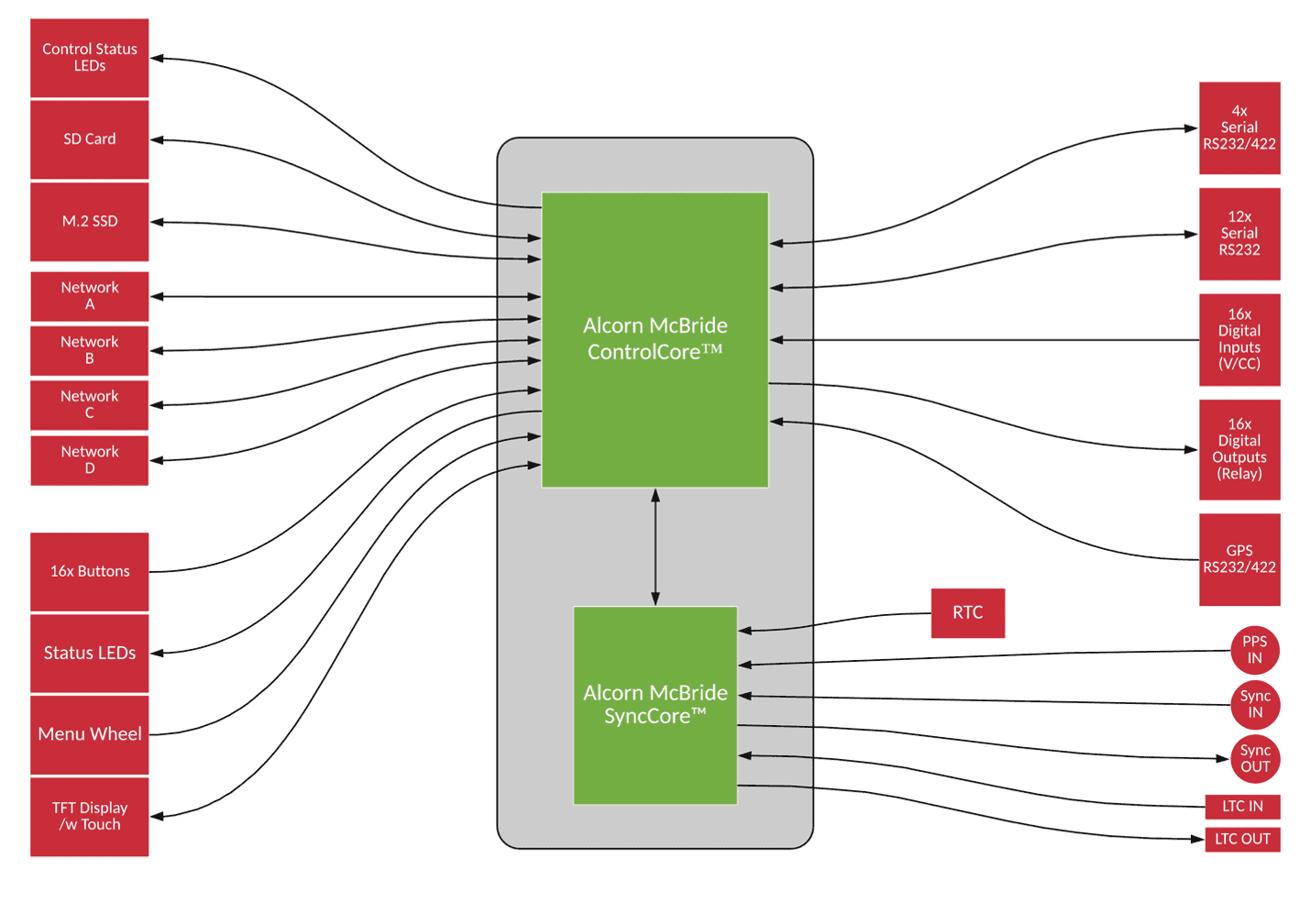

Block Diagram
