Specifications
These are the specifications of the RidePlayerX
| Control | |
|---|---|
| Show Control | Advanced Scripted Control |
| Timeline Programming | |
| ShowTouch Touch Panel Integration | |
| Media File Management | |
| Intuitive Device Control (PLC, DSP, Animation, AV, etc.) | |
| Display | 4.3″ TFT LCD w/navigation buttons |
| Indicators | Power, LTC, Lock, Live Mode, GPS, Serial, Ethernet, Inputs, Outputs, Audio Status |
| Ethernet | 2 x 10/100/1000 BaseT (M12 X-Coded) |
| Serial | 2 x RS232/RS422 (10-pin Molex) |
| Digital Inputs | 8 x Contact/Voltage (5-24VDC) Inputs (16-pin Molex) |
| 400k Input Impedance (Voltage Mode) | |
| Digital Outputs | 4 x Solid-State Relay Output w/ 400mA self-healing fuses (8-pin Molex) |
| Voltage Sense Inputs | 1 x Power Supply Voltage-Sense 0-52VDC (Internal) |
| 1 x External Voltage Sense 0-100VDC (4-pin Molex) | |
| Show Memory | Removable SD card w/Captive Socket |
| Audio | |
|---|---|
| Playback | 64 playback tracks |
| 16-bit or 24-bit WAV (Multichannel, Stereo, or Mono) | |
| 44.1kHz or 48kHz | |
| Sample accurate | |
| DSP | 7-band Parametric EQ per output |
| High-Pass, Low-Pass, Notch Filters | |
| Phase Shift, Treble Shelf, Bass Shelf | |
| Network Audio | 16 x 16 Dante/AES67 Interface – (2x M12 X-Coded – Network Audio A or B) |
| Media | 256GB M.2 SSD (Internal) |
| 250+ hours of uncompressed audio content | |
| Thousands of clips |
| Synchronization | |
|---|---|
| Sync Inputs | PTP In – IEEE1588/CIP-Sync (M12 X-Coded – Network Control A or B) |
| NTP In (M12 X-Coded – Network Control A or B) | |
| GPS In (GPS Port – 8 pin Molex) | |
| SMPTE LTC In (6-Pin Molex) | |
| Sync Outputs | PTP Out – IEEE1588/CIP-Sync (M12 X-Coded – Network Control A or B) |
| NTP Out (M12 X-Coded – Network Control A or B) | |
| SMPTE LTC Out (6-Pin Molex) | |
| Frame Rates | 23.976, 24, 25, 29.97, 30, 47.952, 48, 50, 59.94, 60 |
| GPS Type | NMEA-0183 /w PPS Clock Input |
| Clock Accuracy | PTP - \<1uS |
| NTP - \<1mS | |
| GPS - \<1uS |
| Physical | |
|---|---|
| Power | 9-52VDC @ 2A Max – 15W Typical |
| Size | 7″W x 11.88″L x 1.9″H (178mm x 302mm x 49mm) |
| Weight | 2.75 lbs (1.25 kg) |
| Environment | 0°C (32°F) to 45°C (113°F) |
| 0-90% Relative Humidity | |
| Mounting | SMK – Single Unit Surface Mount Kit (Included) |
| VSMKX-1 – Single Unit Surface Mount Kit with Vibration Dampening | |
| VSMKX-2 – Dual Unit Surface Mount with Vibration Dampening | |
| Compliance | UL, CE, CB, WEEE, RoHS |

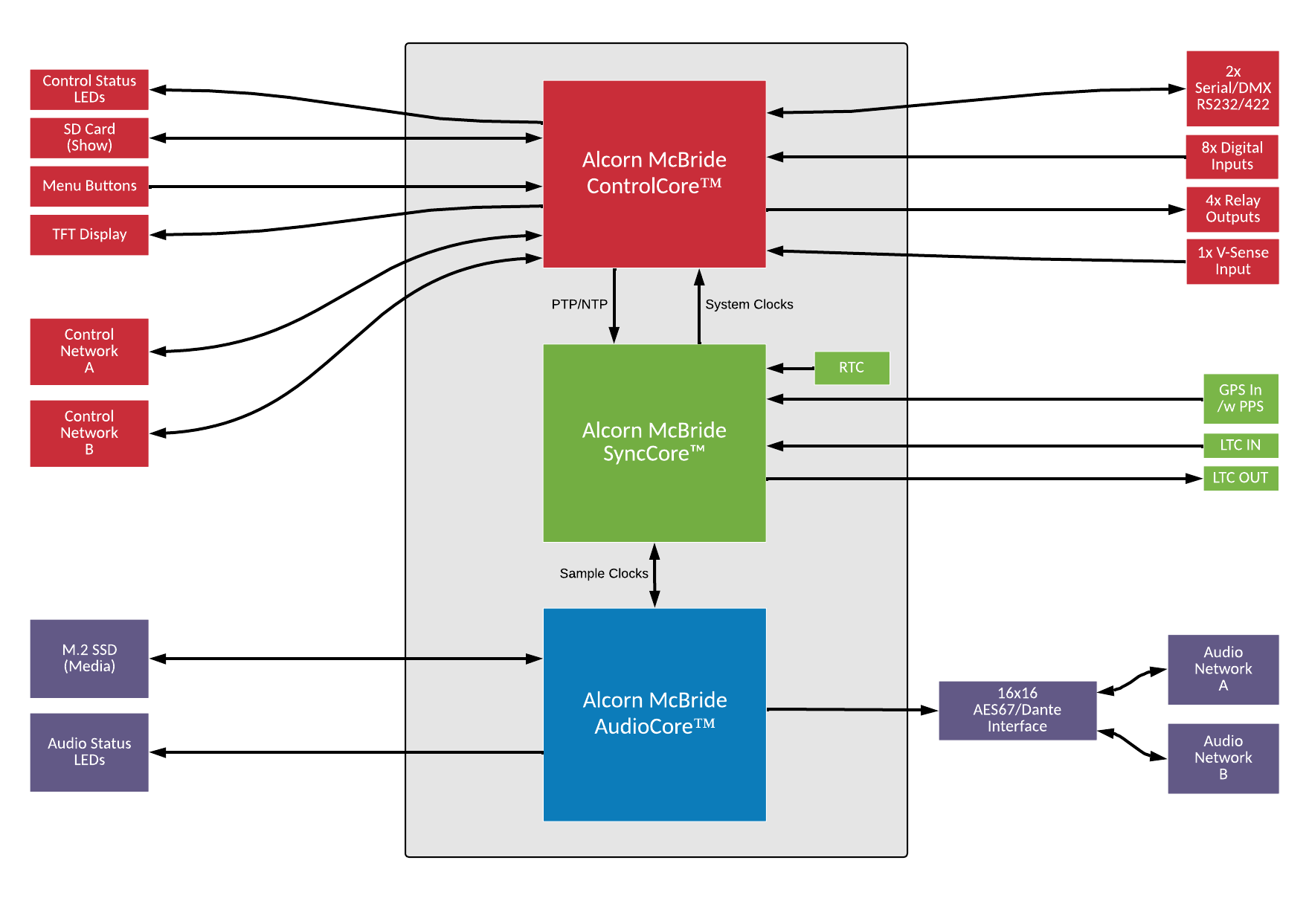

Block Diagram
