Specifications
These are the specifications of the RidePlayer
| Control | |
|---|---|
| Show Control | Advanced Scripted Control |
| Timeline Programming | |
| ShowTouch Touch Panel Integration | |
| Media File Management | |
| Tightly-integrated Device Control (PLC, DSP, Animation, AV, Projection, etc.) | |
| Display | 42x8 character user-programmable OLED /w navigation buttons |
| Indicators | Power, LTC, Sync, Live Mode, Serial, Ethernet, Inputs, Outputs, Audio Status |
| Ethernet | Primary - 10/100/1000BaseT (M12 X-Coded) |
| Secondary - 10/100BaseT (M12 X-Coded) | |
| Serial | 2 x RS232/RS422 (12-pin Molex) |
| Digital Inputs | 8 x Contact/Voltage Inputs (16-pin Molex) |
| Software Configurable for Voltage (5-24VDC) or Contact Closure | |
| Digital Outputs | 4 x Dry-contact Relay Output /w 900mA self-healing fuses (8-pin Molex) |
| Analog Inputs | 1 x Power Supply Voltage-Sense (Internal) |
| 1 x General Purpose 0-10VDC (4-pin Molex) | |
| Show Memory | Removable SD Card /w Captive Socket |
| GPS | NMEA-0183 waypoint triggering |
| Audio | |
|---|---|
| Formats | WAV (Multichannel, Stereo, or Mono) |
| Output Channels | 16 |
| Playback Tracks | 64 (Polyphonic) |
| Sample Rates | 48 kHz |
| 44.1 kHz | |
| Bit Depths | 24-bit |
| 16-bit | |
| Dynamic Range | >104 dB |
| Network Audio | 16x16 Dante (RJ45 - Primary & Secondary) |
| 16x16 AES67 (RJ45 - Primary & Secondary) | |
| Line Outputs | 16 x unbalanced outputs (4 x 8-pin Molex) |
| -17dBV (with 24VDC Power) | |
| Speaker Outputs | 16 x 25W (bridgeable to 50W) (2 x 16-pin Molex) |
| DSP | 7-band Parametric EQ per output |
| High-Pass, Low-Pass, Notch Filters | |
| Phase Shift, Treble Shelf, Bass Shelf | |
| Storage | 128GB M.2 SSD (Internal) |
| 250+ hours of uncompressed audio content | |
| Thousands of clips |
| Synchronization | |
|---|---|
| Sync Inputs | PTP In -- IEEE-1588/CIP-Sync (Primary Control Port - M12 X-Coded) |
| NTP In (Primary Control Port - M12 X-Coded) | |
| GPS In (Serial Port – 12-pin Molex) | |
| SMPTE LTC In (6-Pin Molex) | |
| Genlock In - Blackburst, C-Sync, Tri-level (BNC) | |
| Sync Outputs | PTP Out -- IEEE-1588 (Primary Control Port - M12 X-Coded) |
| NTP Out (Primary Control Port - M12 X-Coded) | |
| SMPTE LTC Out (6-Pin Molex) | |
| Genlock Out - C-Sync (BNC) | |
| Frame Rates | 23.976, 24, 25, 29.97, 30, 47.952, 48, 50, 59.94, 60 |
| GPS Type | NMEA-0183 /w PPS Clock Input |
| Clock Accuracy | GPS - \<1uS /w \<1ppB Free-run accuracy |
| PTP - \<1uS /w \<1ppB Free-run accuracy | |
| Genlock + NTP - \<1mS /w \<10ppB Free-run accuracy |
| Physical | |
|---|---|
| Power | 9-28VDC |
| 24VDC @ 3A without Speakers | |
| 24VDC @ 20A with Speakers | |
| 25A Circuit Breaker | |
| Dimensions | 9.5”W x 13.1”L x 3.3”H (242mm x 333mm x 84mm) |
| Weight | 12 lbs (5.5 kg) |
| Environment | 0°C (32°F) to 38°C (100°F) |
| 0-90% Relative Humidity | |
| Mounting | Configurable surface-mount brackets (Ends or Sides) |
| Compliance | UL, CE, CB, WEEE, RoHS |

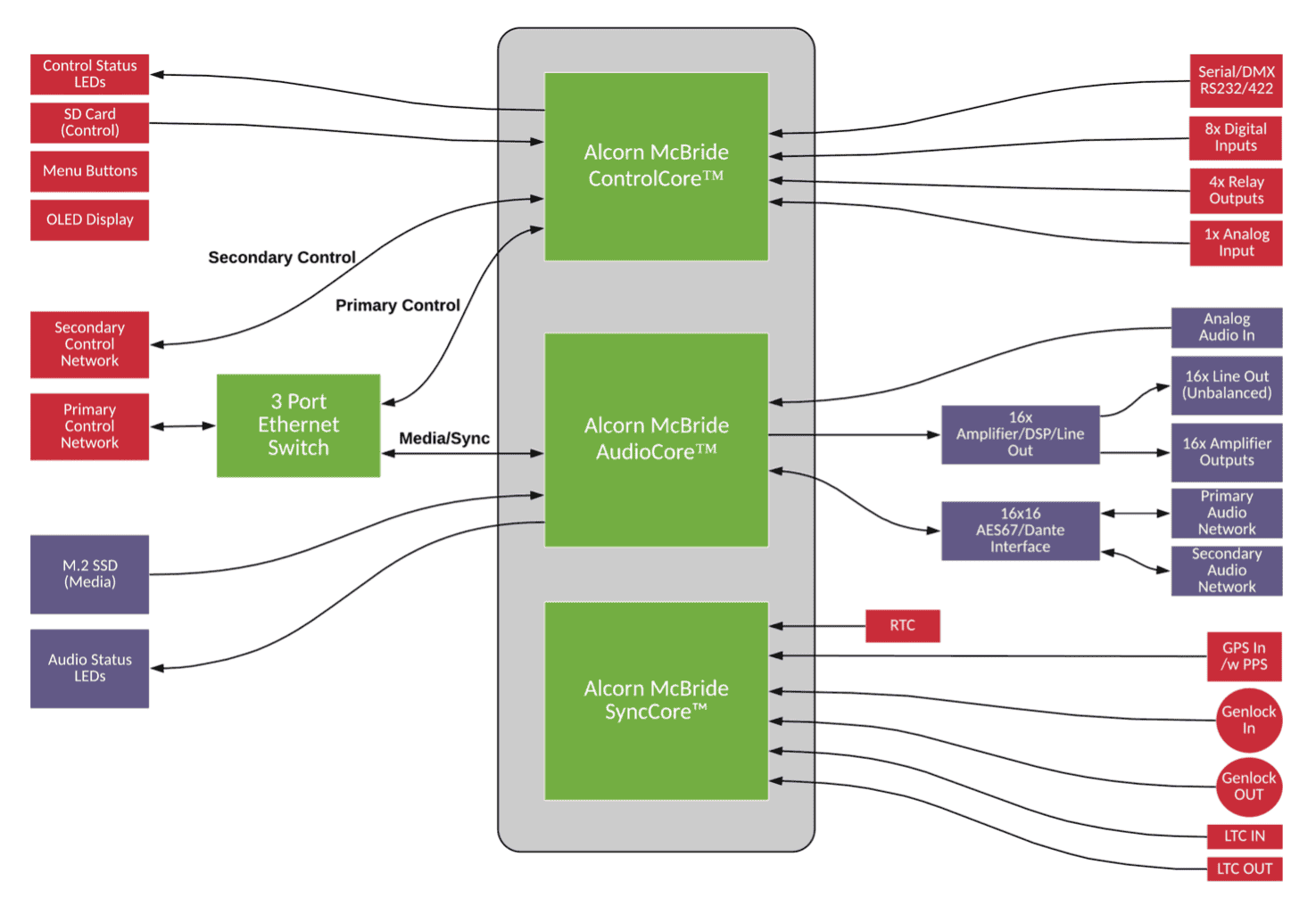

Block Diagram
