Specifications
Control
| Control | |
|---|---|
| Indicators | Power |
| Network - Link/Activity | |
| Audio - Signal/Mute | |
| Status - Amp OK, Protect, High Temp, Clipping | |
| Network Control* | Amp Enable/Disable |
| Mute Enable/Disable | |
| Network Monitoring* | Amp Status |
| Power Status | |
| Clipping |
NOTE: RidePlayer, RidePlayerX, or a PC running the RideAmp Utilities software is required for Network Control/Monitoring via the audio network link.
Audio
| Audio | |
|---|---|
| Speaker Outputs | 16 x Speaker outputs (2 x 16-pin Molex) |
| Non-Bridged Mode: | |
| 24 VDC: 16 x 30 W @ 8 Ω | |
| 12 VDC: 16 x 15 W @ 4 Ω | |
| Bridged Mode: | |
| 24 VDC: 16 x 60 W @ 8 Ω | |
| 12 VDC: 16 x 20 W @ 4 Ω | |
| Minimum Speaker Impedance | Non-Bridged: 4 Ω |
| Bridged: 2 Ω | |
| Network Audio | 16 Input Dante/AES67 Interface (16x0) |
| 100/1000 BaseT (2 x M12 X-Coded) | |
| Internal Switch to support daisy-chaining RideAmp units | |
| Frequency Response | 3 Hz - 45 kHz (± 1 dB) |
| S/N Ratio | > 113 dB |
| THD+N | < 0.005 % |
Physical
| Physical | |
|---|---|
| Power | 9-26 VDC @ 20 A Max |
| 260 mA @ 24 VDC (Hard Mute) | |
| 820 mA @ 24 VDC (Ready) | |
| Fuse | 25 A/80 V ATO-FKH Blade Fuse |
| Dimensions | 11.9” L x 7.2” W x 1.7” H (302 mm x 183 mm x 44 mm) |
| Weight | 2.35 lbs (1.1 kg) |
| Environment | 0°C (32°F) to 38°C (100°F) |
| 0-90% Relative Humidity | |
| Mounting | SMK-1: Surface Mount (Included) |
| VSMKX-1: Single Unit Surface Mount Kit /w Vibration Dampening | |
| VSMKX-2: Dual Unit Surface Mount Kit /w Vibration Dampening |

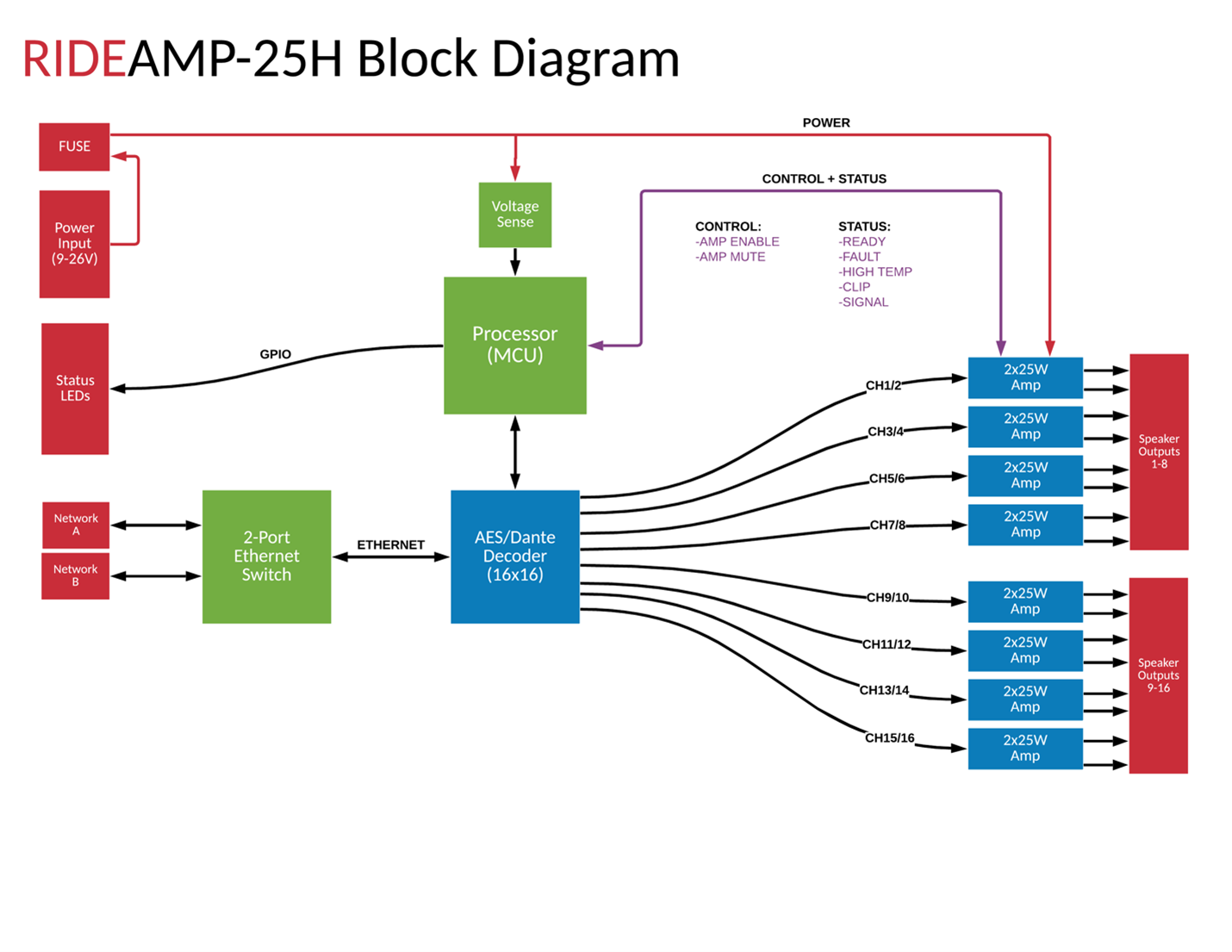

Block Diagram
