Specifications
These are the specifications of the BinloopX chassis with the BX-CON1 controller card installed.
| Control | |
|---|---|
| Show Control | Advanced Scripted Control |
| Timeline Programming | |
| ShowTouch Touch Panel Integration | |
| Media File Management | |
| Display | 4.3" TFT LCD Main Display + 8 x 1.8" A/V Module Status Displays |
| Indicators | Power, LTC, Sync, Live Mode |
| Ethernet | 100/1000 BaseT (RJ45) |
| Serial | RS232/RS422 (7-pin Phoenix) |
| Digital Inputs | 8 x Contact/Voltage Inputs (2 x 8-pin Phoenix) |
| Software Configurable for Voltage (5-24VDC) or Contact Closure |
| Synchronization | |
|---|---|
| Sync Inputs | PTP In -- IEEE-1588/CIP-Sync (RJ45) |
| NTP In (RJ45) | |
| GPS In (7-pin Phoenix) | |
| SMPTE LTC In (3-Pin Phoenix) | |
| Genlock In - Blackburst, C-Sync, Tri-level (BNC) | |
| Sync Outputs | PTP Out -- IEEE-1588 (RJ45) |
| NTP Out (RJ45) | |
| SMPTE LTC Out (3-Pin Phoenix) | |
| Genlock Out - C-Sync (BNC) | |
| Frame Rates | 23.976, 24, 25, 29.97, 30, 47.952, 48, 50, 59.94, 60 |
| GPS Type | NMEA-0183 /w PPS Clock Input |
| Clock Accuracy | GPS - \<1uS /w \<1ppB Free-run accuracy |
| PTP - \<1uS /w \<1ppB Free-run accuracy | |
| Genlock + NTP - \<1mS /w \<10ppB Free-run accuracy |
| Physical | |
|---|---|
| Power | 110-240VAC Redundant Power Supply |
| 150W Typ, 300W Max | |
| Dimensions | 19.3"W x 17.2"L x 5.2"H (490mm x 437mm x 131mm) |
| Weight | Empty Slots -- 20 lbs (9.1 kg) |
| Fully Loaded -- 36 lbs (16.3 kg) | |
| Environment | 0°C (32°F) to 38°C (100°F) |
| 0-90% Relative Humidity | |
| Mounting | 3U 19" Rack-Mount |
| Compliance | UL, CE, CB, WEEE, RoHS |
A/V Modules
For specifications on the A/V capabilities of the BinloopX, refer to the specific A/V modules below:
| A/V Modules | |
|---|---|
| BX-4KU | Video Playback - 1ch 4K/UHD, 4ch 2K/HD, 12G-SDI Coax & SFP, DisplayPort |
| BX-16A | Audio Playback - 16ch, 64-Track Polyphonic Playback, 16x16 Dante/AES67, DSP |

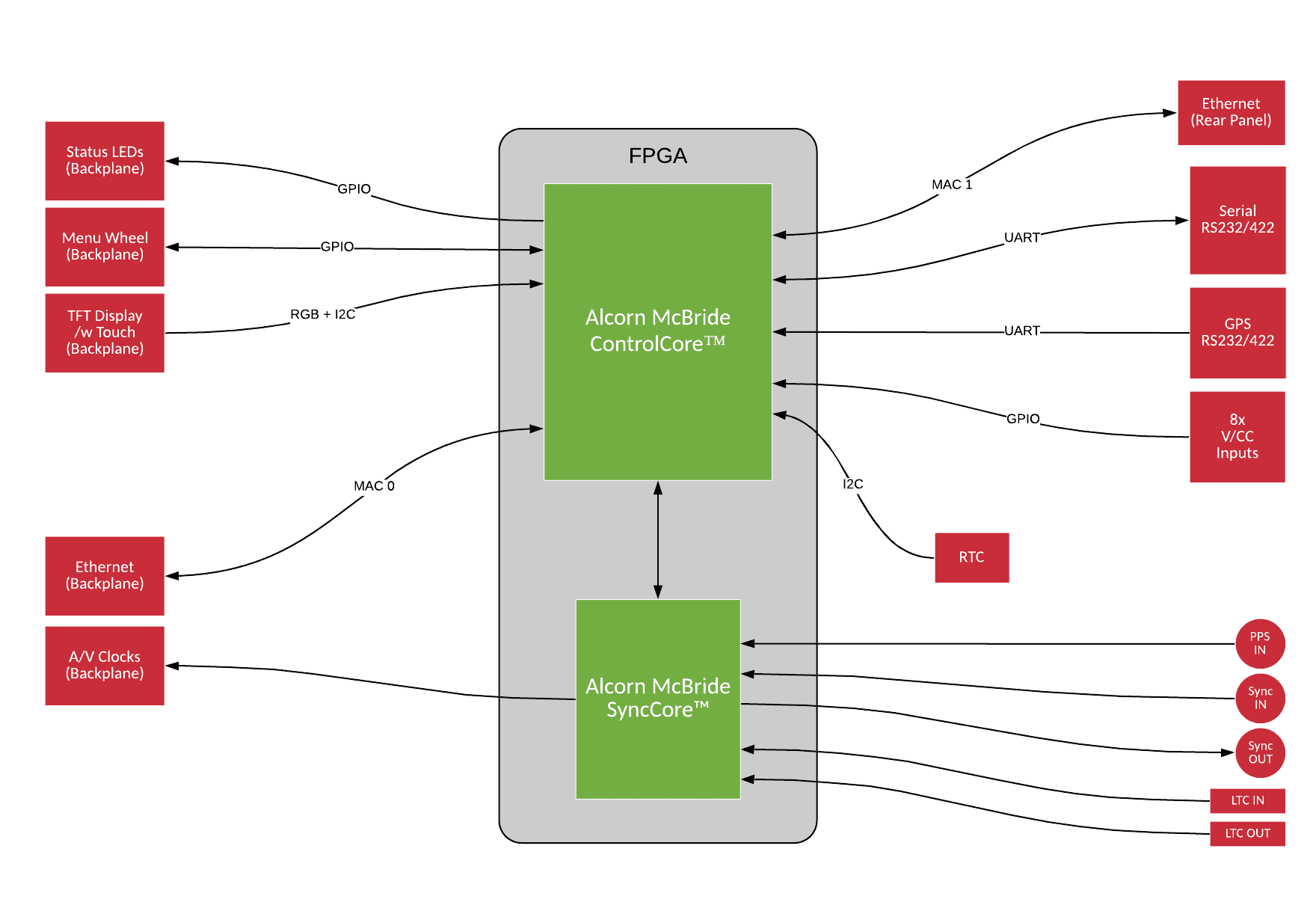

Block Diagram
