Specifications
These are the specifications of the RideAmp-250Q
| Control | |
|---|---|
| Indicators | Power/Fault |
| Network - Link/Activity | |
| Audio - Signal/Mute | |
| Status - Amp OK, Protect, High Temp, Clipping | |
| Config Switches | D1 - Factory Defaults |
| D2 - Firmware Update Mode | |
| Network Control | Amp Enable/Disable |
| Channel Mute/Unmute | |
| Channel Volume | |
| Channel Bridge Enable | |
| Channel Polarity Set | |
| Fault Alarm Read/Clear | |
| Low-Voltage Shutdown Threshold | |
| Indicator Mode and Brightness Controls | |
| Reboot Unit, Reboot Audio Network, Restore Factory Defaults | |
| Network Monitoring | Internal Temperature |
| Fan Speed/Status | |
| Audio Present | |
| Channel Clipping/Fault/Warning | |
| Channel Route Status | |
| Input Voltage Level | |
| Output Current Level | |
| Audio Network Status (Comm/Sync State, Data Ready, Connectivity Info) |
NOTE: RidePlayer, RidePlayerX, or a PC running the RideAmp Utilities software is required for Network Control/Monitoring via the audio network link.
| Audio | |
|---|---|
| Speaker Outputs | 4 x Speaker outputs (1 x 8-pin Molex) |
| Non-Bridged Mode: | |
| 4 x 255W @ 4-Ohms (1% THD) | |
| 4 x 150W @ 8-Ohms (1% THD) | |
| Prallel Bridged Mode: | |
| 2 x 500W @ 2-Ohms (1% THD) | |
| 2 x 290W @ 4-Ohms (1% THD) | |
| Min Speaker Impedance | Non-Bridged - 4-Ohms |
| Parallel Bridged - 2-Ohms | |
| Network Audio | 4 Input Dante/AES67 Interface (4x0) |
| 100/1000 BaseT (2 x M12 X-Coded) | |
| Internal Switch to support daisy-chaining RideAmp units | |
| Gain Control | Digital Control (Default -6dB) |
| External Disable | Yes |
| Frequency Response | 10Hz - 22kHz (+/- 1dB) |
| S/N Ratio | >111dB (A Weighted) |
| Output Noise | <85uV (A Weighted) |
| THD+N | <0.006% at 1W into 4-Ohms and <0.01% to Clipping |
| Physical | |
|---|---|
| Power | 18-50VDC |
| 48VDC @ 25A Max | |
| 48VDC Idle Current (Unloaded) - 200mA - Muted | |
| 48VDC Idle Current (Unloaded) - 450mA - Ready | |
| 24VDC @ 30A Max | |
| 24VDC Idle Current (Unloaded) - 400mA - Muted | |
| 24VDC Idle Current (Unloaded) - 900mA - Ready | |
| Heat Loss | 30 BTU/h Idle - Muted |
| 75 BTU/h Idle - Ready | |
| 170 BTU/h (8Ω) 280 BTU/h (4Ω) - 1/8 Power | |
| 265 BTU/h (8Ω) 540 BTU/h (4Ω) - 1/3 Power | |
| Fuse | 80V/40A ATO-FKH Blade Fuse |
| Dimensions | 11.55”L x 7”W x 1.7”H (294.5mm x 177.8mm x 44mm) |
| Weight | 4.20 lbs (1.9 kg) |
| Environment | 0°C (32°F) to 45°C (113°F) |
| 0-90% Relative Humidity | |
| Mounting | SMK - Single Unit Surface Mount Kit (Included) |
| VSMKX-1 - Single Unit Surface Mount Kit /w Vibration Dampening | |
| VSMKX-2 - Dual Unit Surface Mount Kit /w Vibration Dampening | |
| Compliance | WEEE, RoHS |

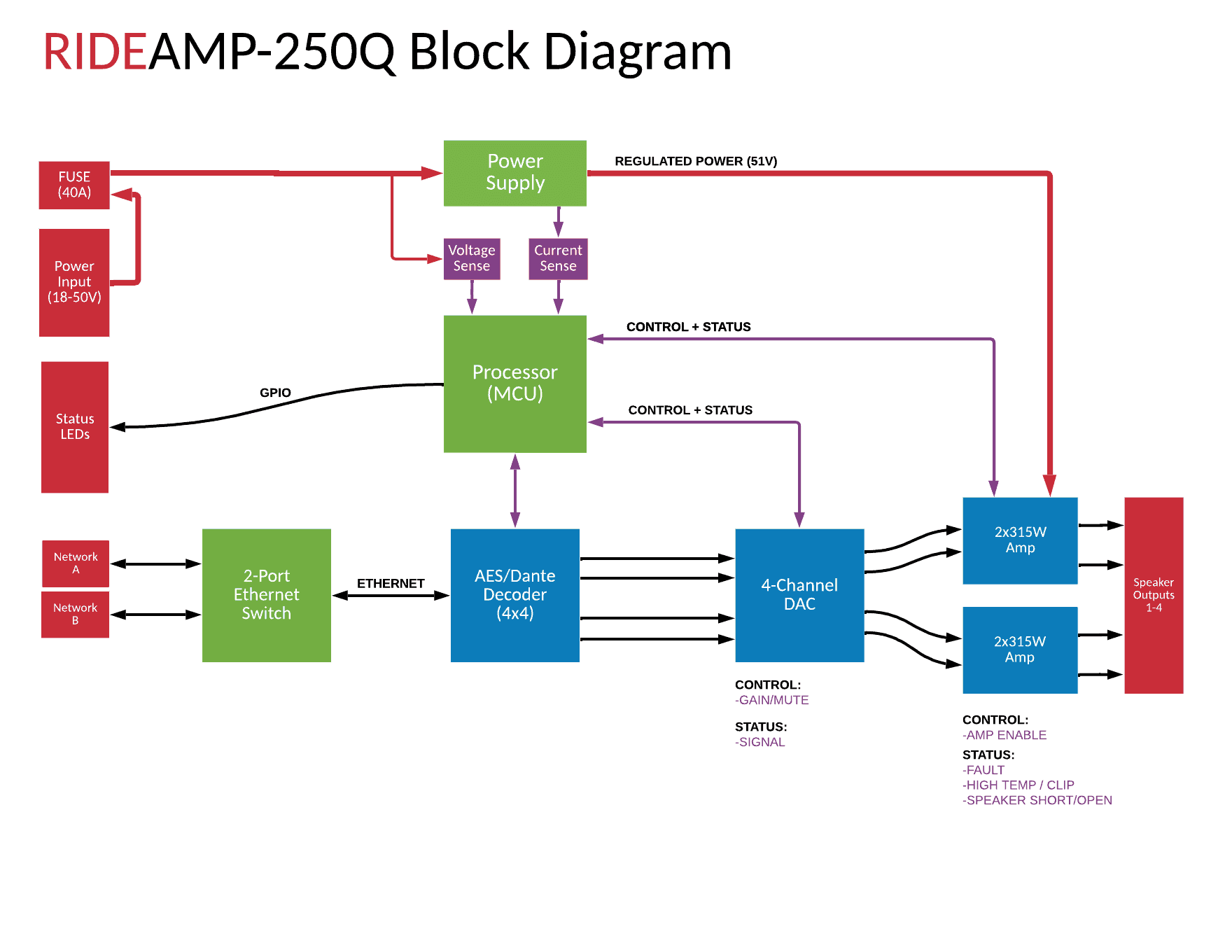

Block Diagram
